Helios Drive Aspire 7,5KW
€800.00
Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.

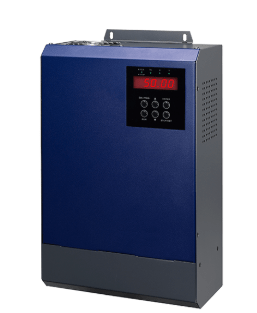

The Helios Drive Aspire 7,5KW is a solar drive converting the DC power output from the solar panel to AC power supply for pump operation.
The Helios Drive Aspire 7,5KW is designed for continuous as well as intermittent operation. The system is suitable for various water supply systems including irrigation. Helios Drive Aspire 7,5KW automatically adjusts the pump flow to the availability of energy, increases the service life of the installation and facilitates its maintenance, and detects system malfunctions.
Information
Features & Benefits
• IP20-rated case is touch-proof
• LED indicators make it easy to monitor the device’s status
• Operating temperature range between -20°C and +45°C
• LED indicators make it easy to monitor the device’s status
• Operating temperature range between -20°C and +45°C
Applications
• Construction sites
• Industrial pumps
• Material processing
• Pool Water Recycling
• Material processing
• Pool Water Recycling
| Power Rating | 7.5 kW |
| Phase | 3phase motors (Star Connection) |
| Supply Voltage | 400 V ac |
| Current Rating | 15 A |
| Series | Aspire 7.5KW |
| For Use With | AC Motors |
| IP Rating | IP20 |
| Output Frequency | 0 → 60Hz |
| Function | Motor Control |
Dimensions
•L = 23cm
•W = 11cm
•H = 34.2cm
•Weight = 6 kg
